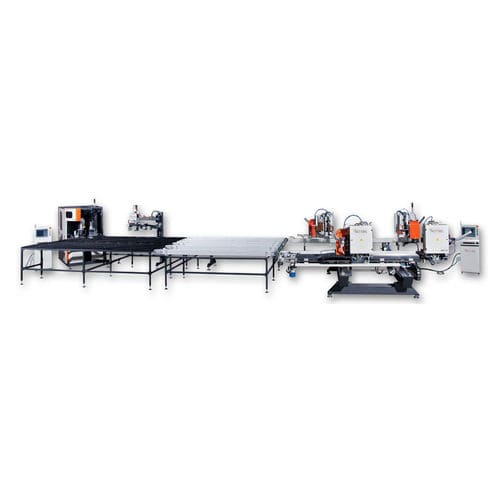

Corner welding and cleaning line SSL 1

CNCfor PVC windows and doorsfor PVC profiles

SSL 1 Four Head Welding and CNC Corner Cleaning Automation Line • An integrated system which consists of a WM 740 four point welding machine, a CS 810 cooling and buffer station, a TS 820 Robotics design turning station and a CM 620 CNC Corner Cleaner • All process is controlled by industrial PC systems from welding to cooling,to turning and finally to cleaning. WM 740 Four Head Welding Machine • Welds four corners of PVC profiles simultaneously at 90 °with high sensitivity and strength • Beckhoff brand, high performance industrial PC operated by Windows XP Embedded. Fanless motherboard system works between 0°C – 55°C, and it comes with a 15” touch screen display • Data transfer via ethernet network connection, wireless network connection or USB interface • Welding parameters are defined by the user for every individual profile(up to 10,000 profiles) • Welding temperature, melting and welding times can be adjusted individually for each profile type. • All machine axes are moved by hardened steel ball screw which provides accuracy and durability. • PC controlled (PID) heat control system to obtain strong welding results in compliance with standards. • Summer / winter working mode is automatically selected,so the temperature adjustment is done easily • Horizontally placed strong mechanical heating plates distribute heat homogeneously without being affected from difficult working conditions. • Easy and fast change for teflons by specially designed roll up teflon system. • Easy and fast change for welding moulds • Works effectively by compressed air supplied to the system • White or colour profiles can be weld with the same sensitivity
