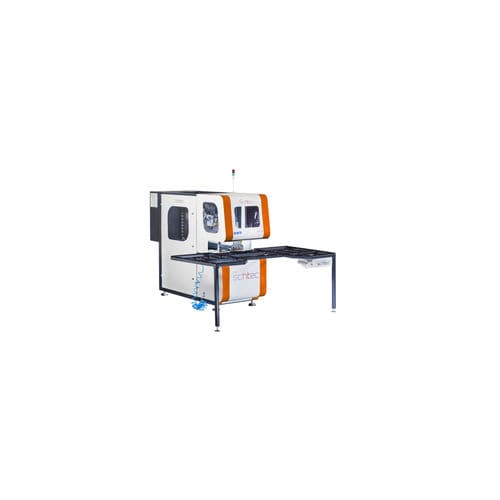

CNC cleaning machine CM 610 CNC

cornerhigh-speed

Corner cleaning stability with 2 axes high-speed servo controlled axes • Automatic knife selection for selected profile foil type (colour / white) • High quality corner cleaning result through durable special knife and bit designs • Faultless cleaning of surface burrs with automatic measurement system • File transfer by USB • Easy programming support via DXF,DWG or PDF file extensions • Central lubrication system for all bearings, axes and sliding bearings • 10” TouchScreen • All alarm sand messages can shown on the machine interface by way of software which developed by SCHTEC Software R&D Department. Technical Informations Voltage - : 400 V AC , 3 P , 50/60 Hz Power Consumption - : 7 kW ,18 A Air Pressure - : 6-8 bar Air Consumption - : 110 lt. / min. Saw Blade Details - : Ø 250 x Ø 30 x 3.2 mm , Z=80 Saw Blade rpm - : 5.200 rpm Drillers rpm - : 14.000 rpm Max. Axes Speed - : 25 m./min. Max.Outter Frame Dimension - : Limitless Max. Profile Height - : 140 mm Min. Profile Height - : 35 mm Max. Profile Width - : 120 mm Machine Height - : 1.900 mm Machine Lenght - : 2.560 mm Machine Width - : 900 mm Machine Weight - : 600 kg Tool Count - : 11 piece Capacity - : 320-360 frame / 8 hours
