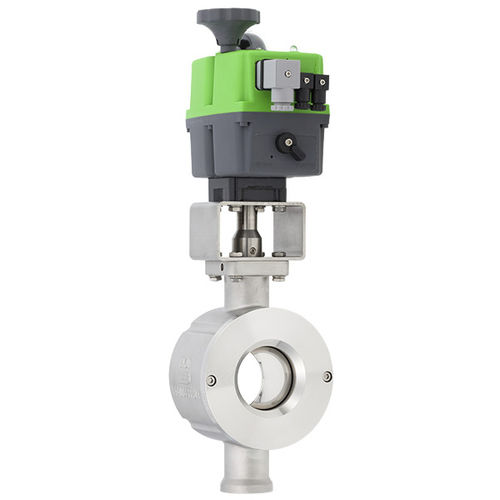

Ball valve 4030

electrically-actuatedshut-offfor control

The ball sector motor valve type 4030 is used in a number of process applications for shut-off and control tasks, especially with abrasive, pasty and fibrous fluids. This series is characterised by an extraordinary rangeability of 300:1 and a high flow capacity. •Size: DN 25 - DN 300 •Pressure: DN25 - DN50: PN40, ANSI#300, ANSI#150 DN65 - DN100: PN25, ANSI#150 DN125 - DN300: PN16, ANSI#150 •Material: Stainless steel 1.4408 / 1.4404 •Temperature: Media temperatur: -40 °C up to 220 °C depending on the sealings •Connection: - Wafer type design •Accessories: Limit switch Position feedback Fail safe feature . . . •Actuator: - Control actuators or 3-point actuators Thrust 230 VAC, 115 VAC, 24 VAC, 400 V, 24 VDC •Actuator variants: - Electrical rotating actuator (on/off, control) •Application: Fluids, suspensions as well as gases, also contaminated, abrasive or pasty.
