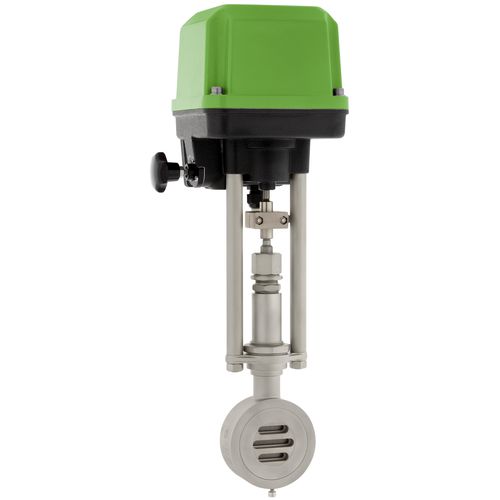

Sliding gate valve 8038 GS1

electricshut-offregulating

The sliding gate motor valve type 8038 with its high-resolution fast actuatoris suitable for a wide range of process applications. Media such as steam, liquids, gases, etc. can be handled precisely. The interaction of high-precision control electronics with the precise stepper motor results in a positioning accuracy of ± 0.2% even with a valve stroke of only 6 mm. By means of super-capacitor technology, in the event of a power supply failure, the valve returns to its defined basic position. •Size: DN 15 - DN 150 •Pressure: PN 10/40 •Material: Stainless steel 1.4408 Carbon steel 1.0619 •Temperature: Media temperature: -60 °C up to 350 °C Special versions available on request. Connection: Wafer type design Accessories: Metal bellows Positioner electronics Analog stroke feedback Limit switch Fail save feature Actuator: Control actuators or 3-point actuators Thrust: 2kN, 5kN Voltage: 100 - 240V (50Hz / 60Hz) or 24V AC/DC Class of protection: IP 67
