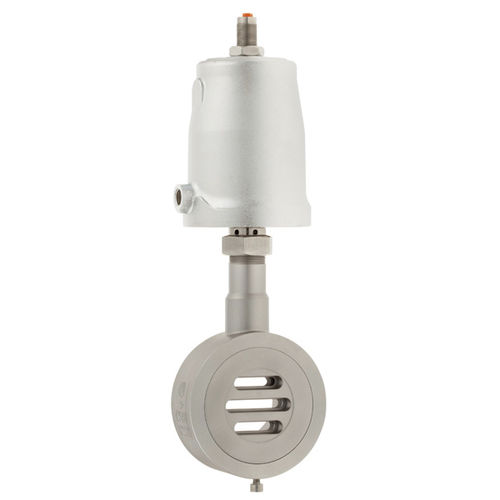

Sliding gate valve 8041 pneumatically-operatedshut-offfor hot water
Add to favorites
Compare this product
Characteristics
- Type
- sliding gate
- Operation
- pneumatically-operated
- Function
- shut-off
- Media
- for hot water, for cooling water, for gas, for air, for steam, for oxygen, for CO2, propane
- Body
- wafer, stainless steel, carbon steel
- Applications
- for industrial applications, for the chemical industry, for the food industry, for wafers
- Other characteristics
- for aggressive media
- DN
Min.: 15 mm
(0.591 in)Max.: 125 mm
(4.921 in)- Pressure
Min.: 10 bar
(145 psi)Max.: 40 bar
(580.2 psi)- Temperature
Min.: -60 °C
(-76 °F)Max.: 230 °C
(446 °F)
Description
The sliding gate valve type 8041 in the short design is universally applicable for neutral and aggressive media in the chemical industry, process engineering and plant design. This sliding gate valve with its small stroke achieves a very high cycle capacity combined with extremely fast cycle times.
Size:
DN15 - DN125
Pressure:
PN 10/40
Material:
Stainless steel 1.4408
Carbon steel 1.0619
Temperature:
Media temperature: -60 °C up to 230 °C
Special versions available on request
Connection -
Wafer type design
Accessories -
Metal bellows
Limit switch
Pilot valve
Stroke limitation
. . .
