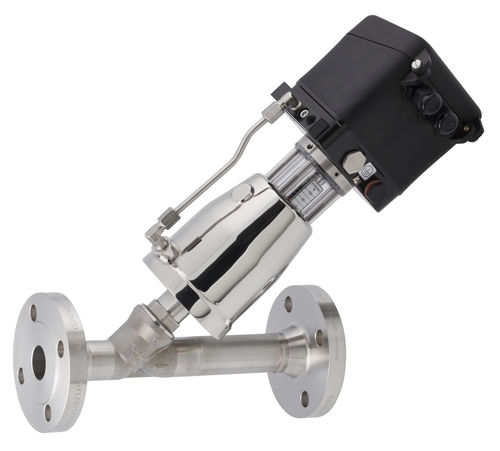

Pneumatically-operated valve 7036

regulatingflangeangle seat

Pneumatic control valve with angle seat design. The angle seat design offers a high flow capacity, the flange connection an easy installation. The integrated digital or analogue positioner is coming along with a very compact design. All wetted parts are made from stainless steel. •Size: DN 8 - DN 50 •Pressure: PN 40 •Material: Body: Stainless steel 1.4408 Actuators: Brass, stainless steel or fibre enforced plastic •Temperature: Media temperature: -30 °C to +200 °C optionally up to +220°C Connection: Flange acc. to DIN EN 1092-1 Flange acc. to ANSI #150 Positioner: Digital positioner type 8049 Electro-pneumatic positioner type 8047 Pneumatic positioner Positioner with integrated process controller Accessories: Inductive limit switches Application: Gases, vapours, liquids
