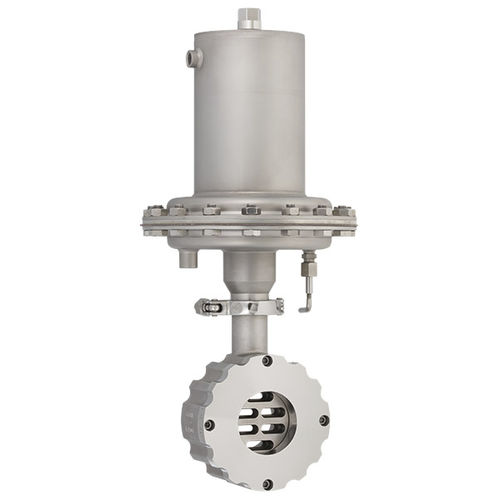

Sliding gate valve 8011 GS3

pressure-reducingpressure-controlwafer

The self-operated pressure regulator Type 8011 in a reinforced version with closed spring cover in the form of a pressure reducing valve (downstream pressure regulator) or an excess flow valve (upstream pressure regulator) is used in a wide range of process engineering control tasks. Media such as steam, liquids, gases, etc. can be excellently controlled without auxiliary energy. •Size: DN 15 - DN 150 •Pressure: PN 10/40 ANSI #150, #300 •Material: Entirely stainless steel Body 1.4408 Actuator 1.4571 Diaphragm materials: CR, EPDM or FKM, optional with PTFE foil •Temperature: Media temperature: -30 °C up to 230 °C Special versions available on request. Connection: Wafer type design Accessories - Closed sealed spring cover with monitoring connection Versions: Pressure range 0,3 - 1,5 bar Pressure range 1,0 - 2,5 bar Pressure range 2,0 - 5,0 bar Pressure range 4,0 - 10 bar
