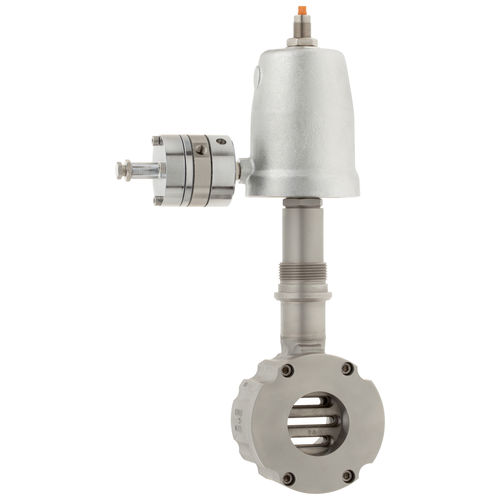

Sliding gate valve 8042 GS3pneumatically-operatedpressure-reducingpressure-control
Add to favorites
Compare this product
Characteristics
- Type
- sliding gate
- Operation
- pneumatically-operated
- Function
- pressure-reducing, pressure-control, hydraulic pressure-control, pneumatic pressure-control
- Media
- petroleum, for hot water, for CO2, for cooling water, propane, for oxygen, for industrial water, for chemical products, for fuel, for liquefied petroleum gas, for LPG, for petroleum, for steam, for gas, for air, for natural gas
- Body
- wafer, stainless steel, carbon steel
- Applications
- for industrial applications, for the chemical industry, industrial, for water, for liquids, for the petroleum industry, for wafers
- Number of channels
- 2/2-way
- Fluid specification
- for aggressive media, for corrosive fluids
- Other characteristics
- ANSI, DIN, normally open, medium-pressure, high-speed, pneumatic piston, for aggressive media, for corrosive fluids, grease
- DN
Max.: 150 mm
(5.906 in)Min.: 15 mm
(0.591 in)- Pressure
Max.: 40 bar
(580.2 psi)Min.: 10 bar
(145 psi)- Temperature
Max.: 230 °C
(446 °F)Min.: -10 °C
(14 °F)
Description
The pressure regulator type 8042 in reinforced version is a smart combination of a pilot pressure regulator with a sliding gate control valve and is excellently suited for gases and vapors. The pressure regulator, which operates with auxiliary pneumatic energy, is characterized by highest dynamics and control quality. External or manual set point adjustment completes the compact and simple design of the valve and regulator.
•Size:
DN15-DN150
•Pressure:
PN10/40
ANSI #150, #300
•Material:
Stainless steel:
Body 1.4408
Cover 1.4404
Carbon steel:
Body 1.0619
Cover 1.4404
•Temperature:
Media temperature: -10 °C up to 230 °C
Special versions available on request.
Connection:
Wafer type design
Accessories -
Metal bellows
Limit switch
Stroke limitation
Versions:
Long or short version possible.
Control range 0,05 - 1,0 bar
Control range 0,5 - 6,0 bar
Control range 0,5 - 2,5 bar
