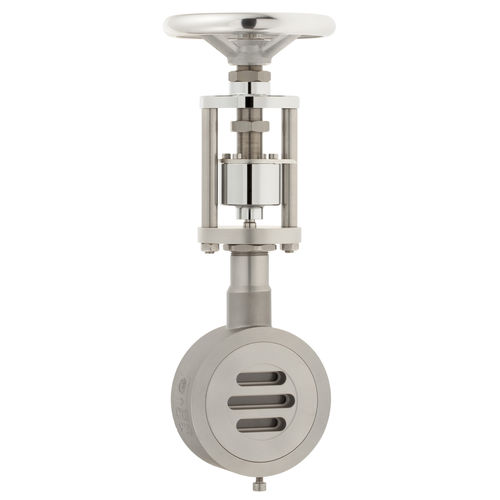

Sliding gate valve 8051 manualstainless steelcarbon steel
Add to favorites
Compare this product
Characteristics
- Type
- sliding gate
- Operation
- manual
- Body
- stainless steel, carbon steel
- DN
Min.: 15 mm
(0.591 in)Max.: 150 mm
(5.906 in)- Pressure
Min.: 10 bar
(145 psi)Max.: 40 bar
(580.2 psi)- Temperature
Min.: -60 °C
(-76 °F)Max.: 230 °C
(446 °F)
Description
The sliding gate manual valve type 8051 in short design is suitable for a wide range of process applications. Media such as steam, liquids, gases, etc. can be shut off safely with low actuating force and can be controlled excellently.
Size:
DN15 - DN150
Pressure:
PN 10/40
Material:
Stainless steel 1.4408
Carbon steel 1.0619
Temperature:
Media temperature: -60 °C up to 230 °C
Special versions available on request.
Connection -
Wafer type design
Accessories -
Limit switch
…
