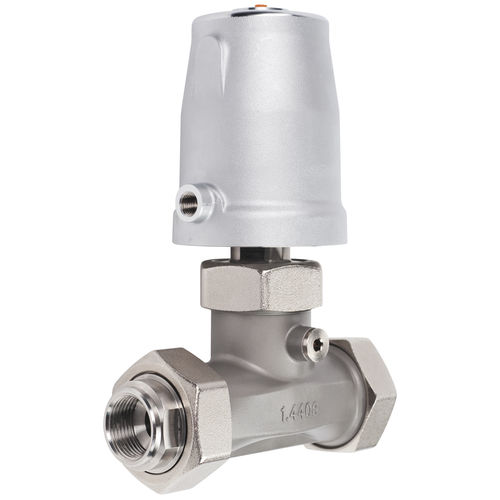

Pinch valve 7078

for liquid food products and beveragesstainless steelfor the food industry

The pneumatic pinch valve type 7078 is a low dead space shut-off valve and at the same time insensitive to dirty, abrasive and pasty media. Decisive for universal use is the straight hose passage for the operating medium - no flow deflection. The hygienic design using FDA-compliant tube materials as well as the simple design principle offer users from the chemical, food and pharmaceutical industries a real alternative. Size: DN 15 - DN 50 Pressure: PN 6 Material: Stainless steel 1.4408 (non-wetted part) Temperature: Media temperature: -40 °C to +160 °C depending on the tube material Connection - Pipe threats nach DIN 2999 NPT-treats Inner sticking socket PVC Welding ends acc. to DIN or ISO Tri-Clamp-connector (inch) Accessories - Limit switch Position feedback Pilot valve . . . Application - Acids, alkalis, seawater, gases, vapours, liquids Especially suitable for highly viscous and abrasive media, sludges, powders.
