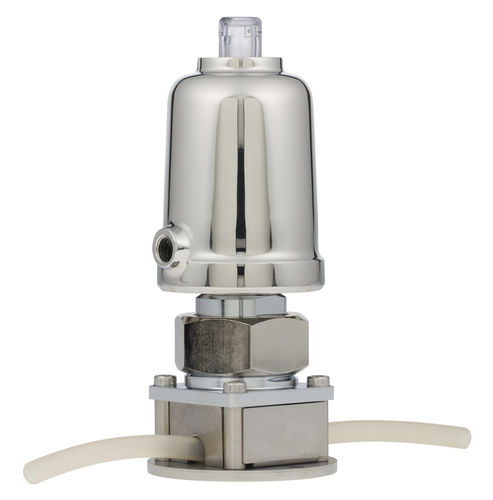

Pinch valve 7072

pneumatically-operatedhygienic

Probably the most hygienic way to shut off a media flow is if the valve does not touch the fluid at all. The endless tube pinch valve type 7072 works in accordance with this principle. In this compact pinch valve, the media flow in an endless tube is constricted by the pneumatic drive or released again by spring reset. The simple operating principle of the mini pinch valve is ideal for many critical applications in the chemical, food and pharmaceutical industries. •Size: DN6 - DN14 •Pressure: Depending on the tube used •Material: Body in chrome-plated brass (no contact with the medium) •Temperature: Media temperature: -30 °C to +170 °C (depending on the tube quality used) Connection: Passage of endless tubes with external diameters from 10 to 18 mm. Accessories - Limit switch Pilot valve Manual override ... Actuator variants - Pneumatic actuator Application - Acids, alkalis, seawater, gases, vapours, liquids
