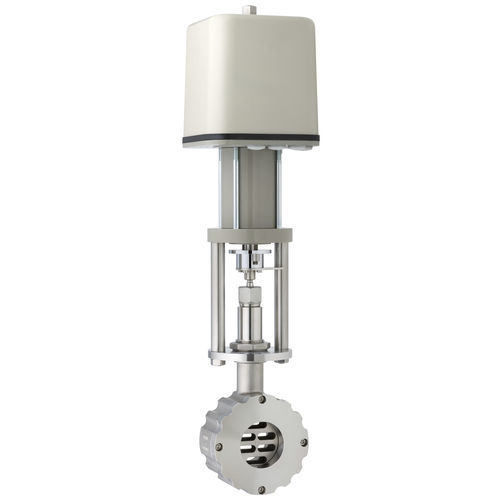

Sliding gate valve 8035 GS3

electrically-operatedshut-offregulating

The reinforced version of the type 8035 sliding gate motor valve features a fail-safe mechanical spring return. It is ideal where mechanical fail-safe options are contained within the specification, e.g. steam and district heating systems. Size: DN15 - DN250 Pressure: PN 10/40, PN100 ANSI #150, #300, #600 Material: Stainless steel: Body 1.4408 Cover 1.4404 Carbon steel: Body 1.0619 Cover 1.4404 Temperature: Media temperature: -60 °C up to 350 °C Special versions available on request. Connection - Wafer type design Accessories - Metal bellows Position electronics Analog stroke feedback Limit switch Fail safe feature . . . Actuator - Control actuators or 3-point actuators Thrust 1.2 kN; 3 kN Voltage 230 V AC, 24 V AC, 110/120 V AC Protection class - IP 54 optionally IP 65
