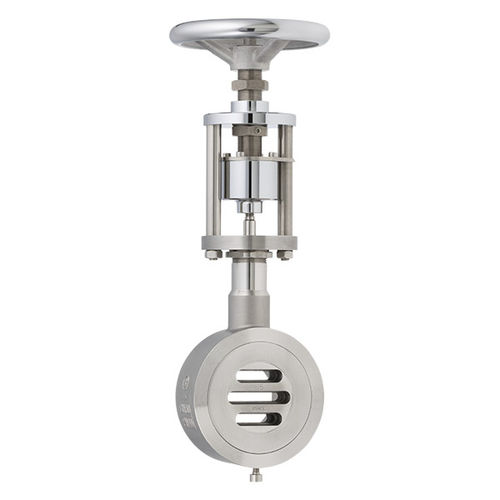

Sliding gate valve 8050 GS1with handwheelfor controlshut-off
Add to favorites
Compare this product
Characteristics
- Type
- sliding gate
- Operation
- with handwheel
- Function
- for control, shut-off, regulating
- Media
- for water, for oil, for chemical products, for fuel
- Body
- wafer, stainless steel, carbon steel
- Applications
- for industrial applications, for the chemical industry, industrial, for process applications, high-precision, for heating, for water, for liquids, for pipe, for burners, for the pharmaceutical industry, heater
- Other characteristics
- for aggressive media
- DN
Min.: 15 mm
(0.591 in)Max.: 150 mm
(5.906 in)- Pressure
10 bar, 40 bar
(145 psi, 580.2 psi)- Temperature
Min.: -60 °C
(-76 °F)Max.: 350 °C
(662 °F)
Description
The sliding gate manual valve type 8050 in long design with on/off and control operation is suitable for a wide range of process applications. Media such as steam, liquids, gases, etc. can be shut off safely with low actuating force and can be controlled excellently.
Size:
DN15 - DN150
Pressure:
PN 10/40
Material:
Stainless steel 1.4408
Carbon steel 1.0619
Temperature:
Media temperature: -60 °C up to 350 °C
Special versions available on request.
Connection -
Wafer type design
Accessories -
Metal bellows
Limit switch
. . .
