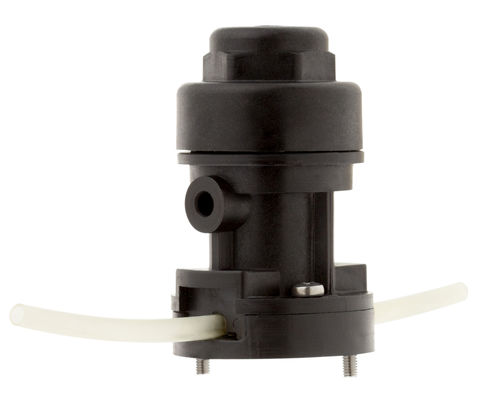

Pinch valve 7071

pneumatically-operatedfor controlminiature

Probably the most hygienic way to shut off a media flow is if the valve does not touch the fluid at all. The mini pinch valve type 7071 works in accordance with this principle for the smallest nominal tube sizes. In this compact pinch valve, the media flow in an endless tube is constricted by the pneumatic actuator or released again by spring reset. The simple operating principle of the mini pinch valve is ideal for many critical applications in the chemical, food and pharmaceutical industries. •Size: DN2 - DN6 •Pressure: Depending on the tube used •Material: Body: Polyamide 12 (no contact with the medium) •Temperature: Media temperature: -30 °C to +100°C (depending on the tube quality used) Connection: Passage of endless tubes with external diameters from 4 to 9mm. Actuator variants - Pneumatic actuator Application - Acids, alkalis, seawater, gases, vapours, liquids
