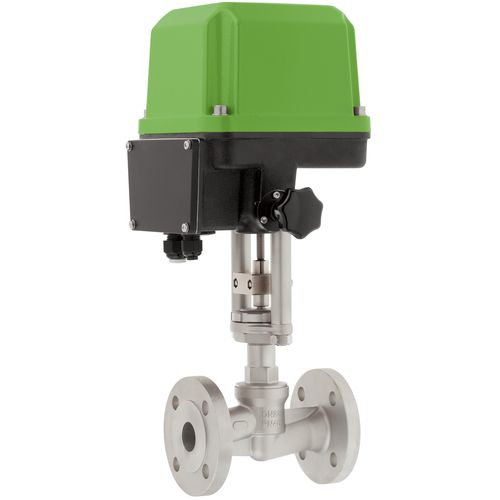

Regulating valve 7332

flangestainless steelfor aggressive media

Highly accurate motor valve for on/off and control operation with neutral and aggressive media. A version with fail-safe option is available. •Size: DN 15 up to DN 50 •Pressure: PN 40, ANSI #150 •Material: Stainless steel 1.4408 •Temperature: -30°C up to +200°C optionally up to +220°C Connection: Flanges acc. DIN EN 1092-1 Flanges acc. ANSI #150 Accessories: Positioner electronics, limit switch, position feedback All control actuators are also available with fail safe feature. Actuator: Control force: 2kN, 5kN Motor voltages: 24 V AC/DC, 230 V, 110/120 V Class of protection: IP65 Control: 3-point; (0)2-10V; (0)4-20mA
