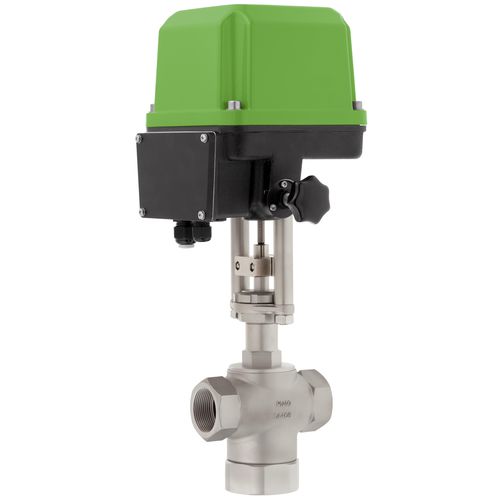

Regulating valve 7382

stainless steel3/2-wayfor aggressive media

Highly precise three-way motor control valve for on/off and control with neutral and aggressive media, on request with fail-safe option. Size: DN 15 - DN 50 Pressure: PN 40 Material: Stainless steel 1.4408 Temperature: Media temperature -30°C to +200°C Applications up to +220°C Connection - Whitworth pipe thread NPT thread Accessories - Positioner electronics, limit switch, position feedback All control actuators are also available with fail safe feature. Actuator - Control force: 2kN, 5kN Motor voltages: 24 V AC/DC, 230 V, 110/120 V Control: 3-point; (0)2-10V; (0)4-20mA Application - Gases, vapours, fluids Protection class - IP 67 Versions - Different control functions such as distributing and mixing function Degreased version, Silicon or PTFE-free version …
