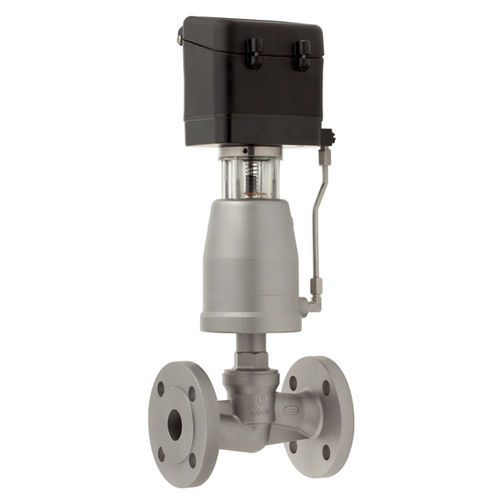

Globe valve 7037pneumatically-operatedelectropneumaticflow control
Add to favorites
Compare this product
Characteristics
- Type
- globe
- Operation
- pneumatically-operated, electropneumatic
- Function
- flow control, regulating
- Media
- for air, for water, for oil, for liquified gas, for chemical products, for fuel, for LPG, petroleum, biogas, for steam, for compressed air, for CO2, for inert gases, for oxygen, for natural gas, propane, for liquefied natural gas
- Body
- with ISO flange connections, soft-seat, IP65, stainless steel
- Applications
- for the chemical industry, for industrial applications, for water, flange, for process applications, for liquids, for pipe, for the petroleum industry, for the gas industry, for hazardous environments, for explosive atmospheres, high-precision
- Number of channels
- 2/2-way
- Fluid specification
- for aggressive media, for corrosive fluids, for fluids with lubricating properties
- Associated function
- for filling applications
- Other characteristics
- normally closed, ISO, pneumatic-drive, digital, DIN, for corrosive fluids, normally open, chemical-resistant, for nitrogen, ATEX, grease, for hazardous fluids, with seal, pneumatically-operated, pressure-compensated, for sour gas, for toxic fluids, for high-viscosity liquids, for hydrogen, IECEx, for compressed gas, top-mounted, pneumatic piston, with integrated positioner, for aggressive media, for ammonia, for flammable liquids, for corrosive environments, alcohol, for viscous fluids
- DN
Max.: 80 mm
(3.15 in)Min.: 15 mm
(0.591 in)- Pressure
Max.: 40 bar
(580.2 psi)Min.: 0 bar
(0 psi)- Temperature
Max.: 220 °C
(428 °F)Min.: -100 °C
(-148 °F)
Description
Pneumatic control valve in flange design. The integrated positioner Type 8049 offers a compact design. All wetted parts are made of stainless steel.
Size:
DN 15 - DN 80
Pressure:
PN 40, ANSI #150
Material:
Stainless steel 1.4408
Temperature:
Media temperature -30°C to +200 °C
Applications from -100°C up to +220°C
Connection -
Flanges acc. DIN EN 1092-1
Flanges acc. ANSI #150
Positioner -
Digital positioner type 8049
Pneumatic and electro-pneumatic positioner type 8047
Positioner with integrated process controller type 8049 IPC
Positioner type 8047 and type 8049 also in explosion-proof version
Accessories -
Inductive limit switches
Actuator variants -
Piston actuator of
- Brass (chrome plated)
- Stainless steel
- Polymer
Stainless steel diaphragm actuator
Application -
Gases, vapours, liquids
Versions -
Low temperature version
Pressure balanced version
Degreased version, Silicon or PTFE-free version
…
