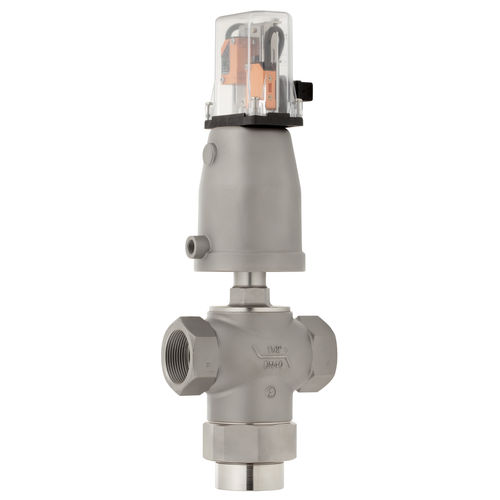

Pneumatically-operated valve 7081 stainless steel3-wayfor aggressive media
Add to favorites
Compare this product
Characteristics
- Operation
- pneumatically-operated
- Body
- stainless steel
- Number of channels
- 3-way
- Other characteristics
- for aggressive media
- DN
Max.: 50 mm
(1.969 in)Min.: 15 mm
(0.591 in)- Pressure
16 bar
(232.1 psi)- Temperature
Max.: 200 °C
(392 °F)Min.: -30 °C
(-22 °F)
Description
Pneumatic actuated three-way valve made from stainless steel for neutral and aggressive media and high cycle applications.
Size:
DN 15 - DN 50
Pressure:
PN 40
Material:
Stainless steel 1.4408
Temperature:
Media temperature -30 °C to +200 °C
Applications up to +220 °C
Connection -
Whitworth pipe thread
NPT thread
Accessories -
Limit switch
Pilot valve
Manual override
. . .
Actuator variants -
Piston actuator of
- Brass (chrome plated)
- Stainless steel
- Polymer
Stainless steel diaphragm actuator
Application -
Gases, vapours, fluids
Versions -
Different control functions such as distributing and mixing function
Low temperature version
Degreased version, Silicon or PTFE-free version
…
