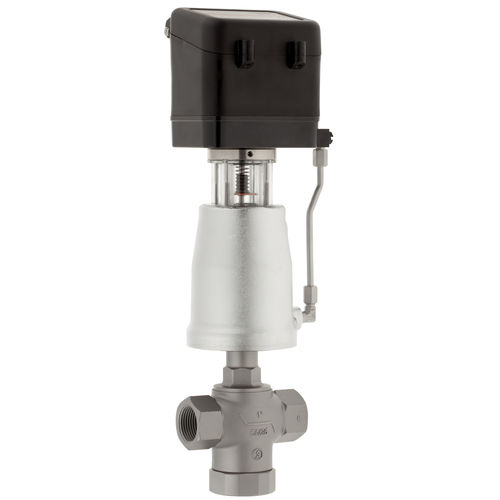

Pneumatically-operated valve 7082regulatingstainless steel3-way
Add to favorites
Compare this product
Characteristics
- Operation
- pneumatically-operated
- Function
- regulating
- Body
- stainless steel
- Number of channels
- 3-way
- Other characteristics
- compact, with integrated positioner, for aggressive media
- DN
Min.: 15 mm
(0.591 in)Max.: 50 mm
(1.969 in)- Pressure
40 bar
(580.2 psi)- Temperature
Min.: -30 °C
(-22 °F)Max.: 200 °C
(392 °F)
Description
Pneumatic actuated three-way valve with an integrated positioner for demanding applications. Due to the stainless steel design suitable for neutral and aggressive media
Size:
DN 15 - DN 50
Pressure:
PN 40
Material:
Stainless steel 1.4408
Temperature:
Media temperature -30°C to +200 °C
Applications from -100°C up to +220°C
Connection -
Whitworth pipe thread
NPT thread
Positioner -
Digitaler positioner type 8049
- 2-wire, 4-wire
- Ex-Pro explosion-proof
- IO-Link
- Integrated process controller IPC
Pneumatic and electro-pneumatic positioner type 8047
- 2-wire
- Ex version
Accessories -
Inductive limit switches
Actuator variants -
Piston actuator of
- Brass (chrome plated)
- Stainless steel
- Polymer
Stainless steel diaphragm actuator
Application -
Gases, vapours, liquids
Versions -
Different control functions such as distributing and mixing function
Low temperature version
Degreased version, Silicon or PTFE-free version
…
