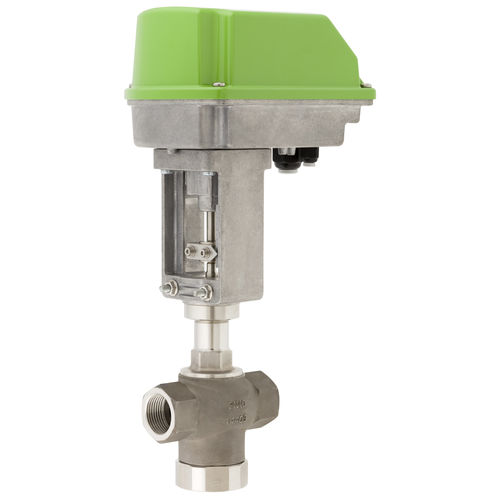

Regulating valve 7282

for compressed airstainless steel3/2-way

Compact three-way motor valve made from stainless steel for on / off and control with neutral and aggressive media, on request with fail-safe option. Size: DN 15 - DN 50 Pressure: PN 40 Material: Stainless steel 1.4408 Temperature: Media temperature -30°C to +200°C Applications up to +220°C Connection - Whitworth pipe thread NPT thread Accessories - Positioner electronics, limit switch, position feedback All control actuators are also available with fail safe feature. Actuator - Control force: 800 N Motor voltages: 24 V AC/DC, 230 V, 110/120 V Control: 3-point; (0)2-10V; (0)4-20mA Application - Gases, vapours, liquids Protection class - IP65 Supply - Different control functions such as distributing and mixing function Degreased version, Silicon or PTFE-free version …
