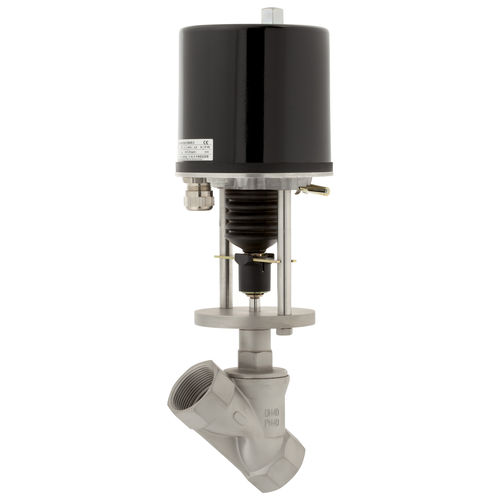

Electrically-operated valve 7110

regulatingfor compressed airangle seat

Angle seat motor valve for on/off and control operation with neutral and aggressive media. Universal actuator configurations with flexible accessories. Size: DN 15 - DN 80 Pressure: PN 16, PN 40 Material: Stainless steel 1.4408 Bronze 5 (Rg 5) Temperature: Media temperature: -30 °C to +200 °C Applications up to +220°C Connection - Whitworth pipe thread NPT thread Welding ends Tri-clamp connection Special connections Accessories - Integrated positioner (positioner electronics) Limit switch Actuator - Thrust: 0.45 kN, 0.9 kN, 2.0 kN Voltages: 230 V - 50 Hz, 110/120 V - 50/60 Hz 24 V - 50 Hz, 24 V DC Application - Gases, vapours, fluids Protection class - IP 43, IP 65 Versions - Pressure balanced version Degreased version, Silicon or PTFE-free version …
