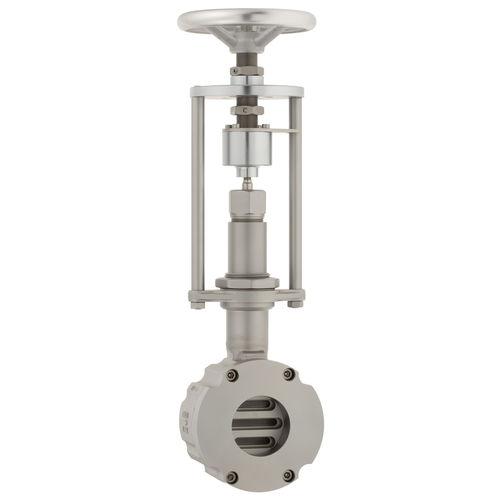

Sliding gate valve 8050 GS3manualfor controlfor steam
Add to favorites
Compare this product
Characteristics
- Type
- sliding gate
- Operation
- manual
- Function
- for control
- Media
- for steam
- Body
- carbon steel, stainless steel
- DN
Min.: 15 mm
(0.591 in)Max.: 250 mm
(9.843 in)- Pressure
Min.: 10 bar
(145 psi)Max.: 100 bar
(1,450.4 psi)- Temperature
Min.: -60 °C
(-76 °F)Max.: 350 °C
(662 °F)
Description
The sliding gate manual valve type 8050 in reinforced design and long construction is suitable for a wide range of process applications. Media such as steam, liquids, gases, etc. can be shut off safely with low actuating force and can be controlled excellently.
Size:
DN15 - DN250
Pressure:
PN 10/40, PN100
ANSI #150, #300, #600
Material:
Stainless steel:
Body 1.4408
Cover 1.4404
Carbon steel:
Body 1.0619
Cover 1.4404
Temperature:
Media temperature: -60 °C up to 350 °C
Special versions available on request.
Connection -
Wafer type design
Accessories -
Metal bellows
Limit switch
. . .
