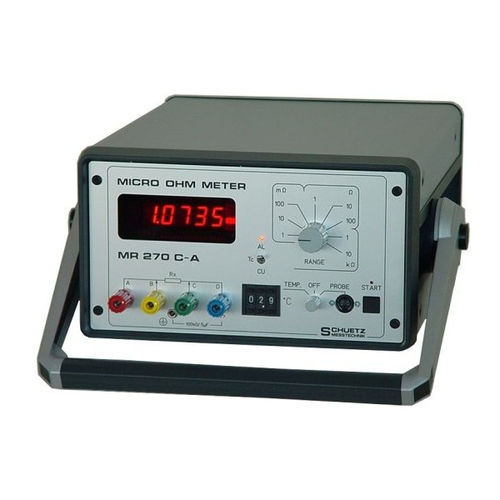

Digital microhmmeter MR 270 C-A

portablelow-resistance

The MR270C-A is specially designed for electric resistance measurements in cable industry applications and inductive loads (transformers, motors). It is perfectly fit both for measuring the meter resistance in connection with a corresponding resistance measurement holding device or for final acceptance control of power cable reels. In the case of cable reels, which often have a cable length of several kilometers, both the compensation of the inductive component and the ability to perform measurements in the presence of high noise levels are important. This also applies to the winding resistance of transformers and motors The highest accuracy is reached when meter sections are measured under water in order to obtain the highest possible temperature stability. The MR270C-A is designed for use with our resistance measurement holding devices, in particular since all connections of the 4-pole measurement are checked by the instrument. Wrong measurements are excluded. Owing to its high resolution the measuring error is very low, even with larger cable sizes. Cable reels are inductive, in particular if the reel itself is made of iron, and the cable length is very high. This “inductance” is very sensitive to interferences of any kind. Even a fork lift mtruck passing by generates a considerable interference voltage mduring the measurement by entering the magnetic field of the reel. To avoid error measurements, the MR270C can be set to a measuring method which guarantees absolutely stable measuring results even in such a case. To avoid error measurements, the MR270C can be set to a measuring method which guarantees absolutely stable measuring results even in such a case.
