Hydraulic press
formingfine-blankingbending

hydraulic press
hydraulic press
hydraulic press
hydraulic press
Add to favorites
Compare this product


Characteristics

Operation
hydraulic
Function
forming, bending, fine-blanking
Applications
for coining
Force

Max.: 15,500 kN

Min.: 3,200 kN

Description

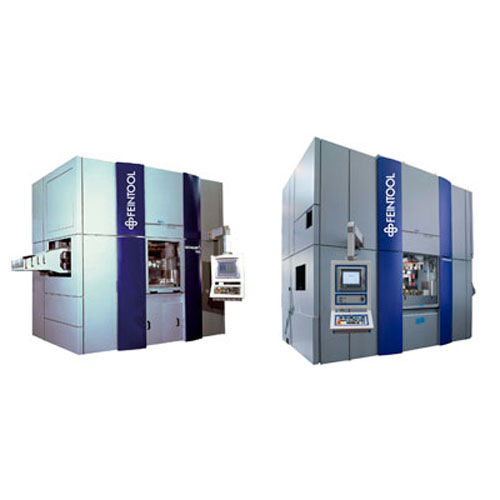

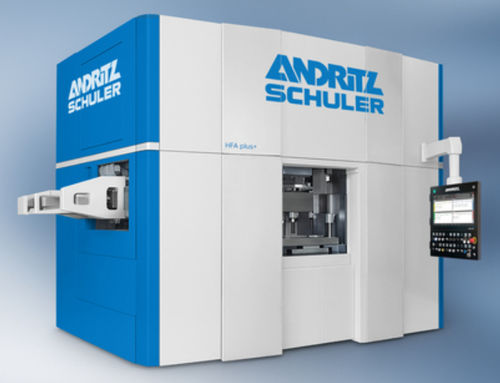

In cooperation with the Swiss company Feintool AG Schuler has built fineblanking press at its Waghäusel plant for over 50 years. These presses are designed specificallly for forming, bending, and coining of complex fineblanking parts. The capcity range of hydraulic fineblanking presses lies between 3,200 and 15,500 kN. They permit processing in material thickness up to 20 mm. Hydraulic fineblanking presses are noted for extreme precision of the slide guiding over the entire length and width directly on the press uprights. Other notable features of these presses include special tool supports that absorb and neutralize forces, the generously dimensioned die space, and the ability to adjust the height of the stroke.

Catalogs

No catalogs are available for this product.

See all of SCHULER - MÜLLER WEINGARTEN‘s catalogs
