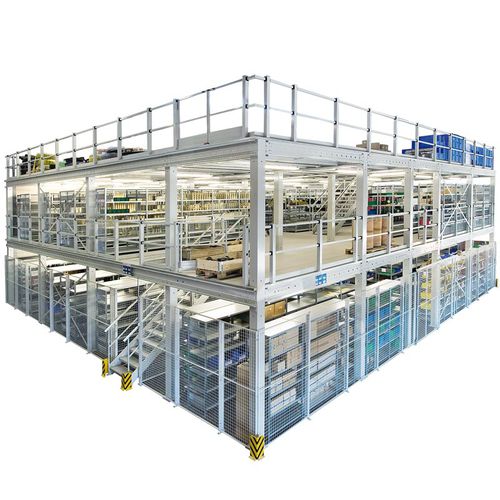

Shelving with mezzanine

storage warehousemulti-storagefor bulky products

Mezzanine systems for maximum storage space and freedom of design With free-standing mezzanines such as the mezzanine system from SCHULTE Lagertechnik, you can multiply your storage space without making structural changes to the building. The design possibilities are almost endless. In contrast to our custom-produced steel structures, mezzanine systems can be expanded, moved or adapted to new load capacity requirements with ease. Using the starter elements from our mezzanine system, a range of different bracing structures can be implemented – and it goes without saying that we can also create multi-storey constructions. As a result, mezzanine loads of between 250 and 1200 kg/m² and higher are possible. Product features Main and secondary beams made from cold-rolled profiles either powder-coated or galvanised Mezzanine profiles with system perforation Load capacity up to 1200 kg/m², higher load capacities on request Distances between pillars up to 10 metres can be implemented with cold-rolled main beams Pillars up to 12 metres high Structure heights of between 250 and 450 mm in various material thicknesses possible, allowing beam heights to be precisely adapted to the load criteria Standard colours RAL 1004, 5010, 7035, 7016, other colours on request, galvanised beams up to a material thickness of 3 mm possible Your benefits Multiply storage space with a multi-storey construction and by using the room volume to its full capacity Increased warehouse efficiency Various fields of application thanks to free-standing structure of the mezzanine system
