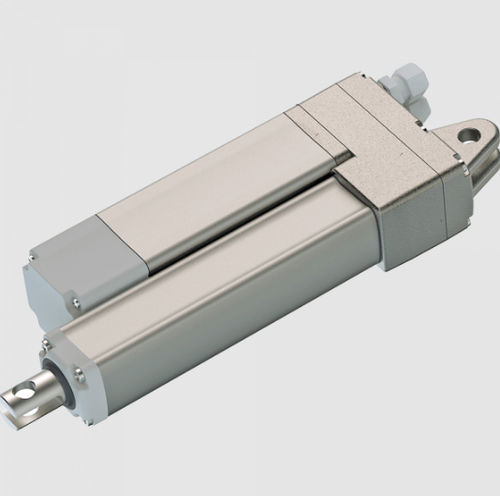

Linear actuator AOP-1/Mtelectricstainless steelaluminum
Add to favorites
Compare this product
Characteristics
- Movement
- linear
- Type
- electric
- Material
- stainless steel, aluminum
- Motor
- DC
- Voltage
- 24-volt, 12-volt, 36 V
- Protection class
- IP69K, IP44
- Other characteristics
- compact
- Stroke
Max.: 300 mm
(11.811 in)Min.: 50 mm
(1.969 in)- Force
300 N, 500 N, 750 N, 1,000 N
- Speed
6 mm/s, 12 mm/s, 16 mm/s, 20 mm/s, 40 mm/s
- Ambient temperature
Max.: 60 °C
(140 °F)Min.: -20 °C
(-4 °F)
Description
Plenty place for customized electronics built in.
Up to 1.000N.
Extra slim dimension
Full metal body
Multiple Gearing solutions
Plenty place for customized electronics built in
Duty cycle
S3 10% based on 10 min.
Customizable aluminium motor housing
• Anti rotation
• Customizable stroke and retracted length
• Various rear attachments available (0° and 90°)
Catalogs
No catalogs are available for this product.
See all of Schumo AG‘s catalogs
