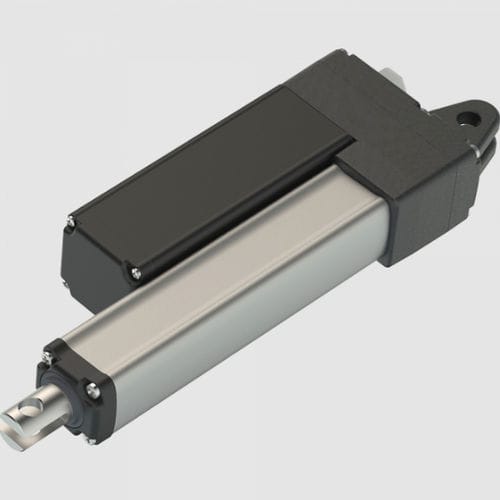

Linear actuator AOP-2/Melectricstainless steelaluminum
Add to favorites
Compare this product
Characteristics
- Movement
- linear
- Type
- electric
- Material
- stainless steel, aluminum
- Motor
- DC
- Voltage
- 24-volt, 12-volt, 36 V
- Protection class
- IP69K, IP44
- Other characteristics
- compact, integrated
- Stroke
Max.: 300 mm
(11.811 in)Min.: 50 mm
(1.969 in)- Force
Max.: 3,500 N
Min.: 400 N
- Speed
Max.: 35 mm/s
Min.: 3 mm/s
- Ambient temperature
Max.: 60 °C
(140 °F)Min.: -20 °C
(-4 °F)
Description
Integrated end-stroke limit switches.
Up to 3.500N.
Powerful and fast
Integrated end-stroke limit switches
Duty cycle
S3 10% based on 10 min.
• Anti rotation
•Customizable stroke and retracted length
•Various rear attachments available (0° and 90°)
