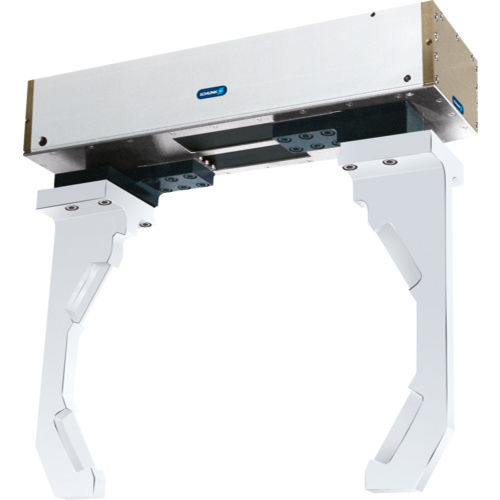

Pneumatic gripper PFH

parallel2-jawfor large parts

2-finger parallel gripper with long jaw stroke for large parts and/or a broad range of parts Field of application: clean to slightly dirty working environments, particularly suitable for the handling of car rims Advantages – Your benefits: - Robust sliding guide for the precise handling of different workpieces - High maximum moments possible suitable for using long gripper fingers - Double piston rack and pinion principle for centric clamping - Mounting from two sides in three screw directions for universal and flexible gripper assembly - Air supply via hose-free direct connection or screw connections for flexible pressure supply in all automated systems Options and special information: The gripper was particularly developed for handling car rims. It is capable of gripping rims from 13" to 21", but can also be used for handling other large workpieces. Units with manual stroke adjustment and versions with shorter and longer strokes are available on request.
