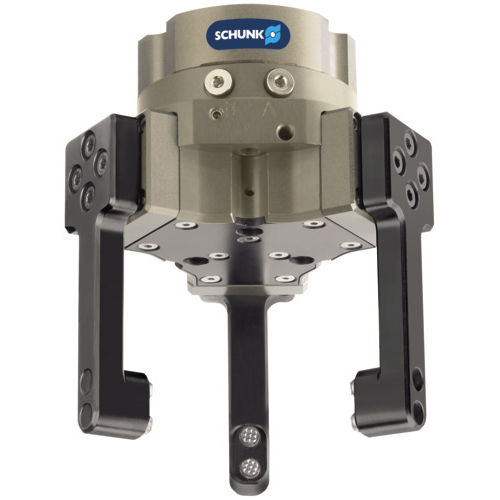

Pneumatic gripper DPZ-plus

concentric3-jawhandling

Description Despite the high moment load of the base jaws, this sealed 3-finger centric gripper meets the requirements of IP67 and does not permit the ingress of any substances from the working environment into the interior of the component Field of application The gripper is ideally suitable for handling of rough or dirty workpieces. Its field of application extends from the loading and unloading of machines, such as in the case of sanitary blocks, grinding machines, lathes or milling machines, to handling tasks in painting plants, in powder-processing or underwater. Advantages – Your benefits Robust interior multi-tooth guidance for the precise handling of different workpieces Lip seal at the outside round guidance for permanent, secure gripper sealing High maximum moments possible suitable for using long gripper fingers Sealed 3-finger centric gripper complies to IP67 requirements despite a high moment load Fastening at one gripper side in two screw directions for universal and flexible gripper assembly Maximum gripping forces at a compact design for a wide range of applications Air supply via hose-free direct connection or screw connections for flexible pressure supply in all automated systems Compact dimensions for minimal interfering contours in handling
