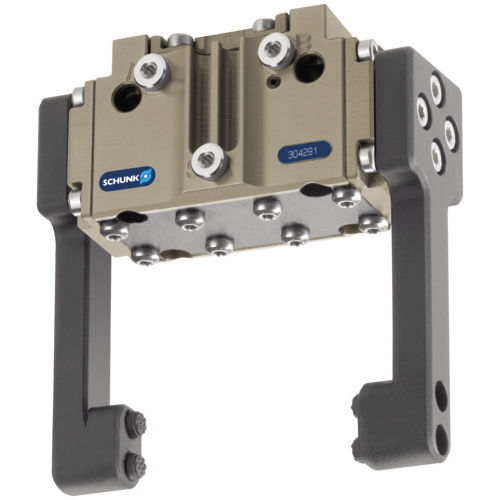

Pneumatic gripper DPG-plus

parallel2-jawhandling

Description Dense 2-finger parallel gripper that meets the requirements of IP67 and does not allow substances to enter the working environment Field of application The gripper is ideally suitable for handling of rough or dirty workpieces. Its field of application extends from the loading and unloading of machines, such as in the case of sanitary blocks, grinding machines, lathes or milling machines, to handling tasks in painting plants, in powder-processing or underwater. Advantages – Your benefits Robust interior multi-tooth guidance for the precise handling of different workpieces Lip seal at the outside round guidance for permanent, secure gripper sealing High maximum moments possible suitable for using long gripper fingers Sealed 2-Finger Parallel Gripper complies to IP67 requirements despite a high moment load Drive concept oval piston for maximum gripping forces Mounting from two sides in three screw directions for universal and flexible gripper assembly Air supply via hose-free direct connection or screw connections for flexible pressure supply in all automated systems Compact dimensions for minimal interfering contours in handling
