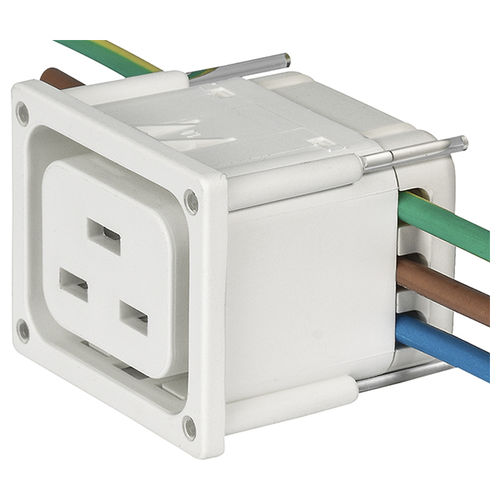

Electrical power supply connector 4710-5 series

snap-onthermoplasticgauge

• Panel mount: Snap-in version, front side • Connector, Pin temperature 70 °C, Protection class I • Wire gauge 10AWG/6.0mm², 12AWG/4.0mm², 2.5mm² • Light Pipe as an accessory, has to be ordered seperately • Live contact as PCB terminal • Protection cover can be used as wire press • IDC terminals acc. to IEC 60998-2-3 for solid wires Unique Selling Proposition • Reduces labor costs • Allows wiring of multiple terminals at once • Light pipe for status indication • Cord retention systems of V-Lock, P-Lock and TwyLock supported Other versions on request • Other panel thickness • Live contact also available as IDC, solder or quick connect terminal • Samples available in grey and white
