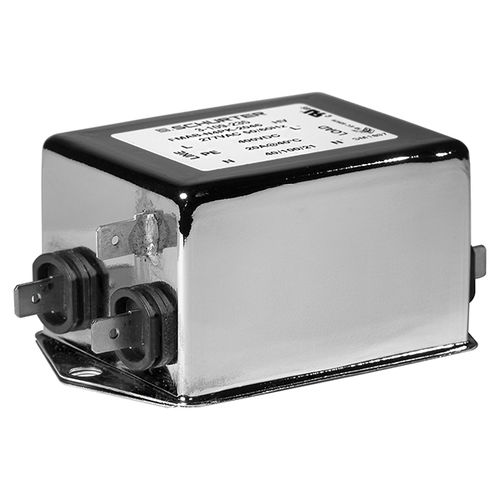

Low-pass electronic filter FMAB HV series
passiveEMIcompact

Low-pass electronic filter - FMAB HV series - SCHURTER - passive / EMI / compact
Low-pass electronic filter - FMAB HV series - SCHURTER - passive / EMI / compact
Add to favorites
Compare this product


Characteristics

Bandwidth
low-pass
Type
passive
Other characteristics
EMI, compact, single-phase, single-stage
Frequency

Min.: 0.01 MHz

Max.: 400 MHz

Voltage

277 V

Primary current

Min.: 1 A

Max.: 20 A

Description

• 1 stage • Compact filter with high symmetrical attenuation Unique Selling Proposition • For high AC- or DC-voltages • Excellent symmetrical attenuation • Completely enclosed steel housing • Optional overvoltage protection • For 277 VAC applications in North America WYE 480/277 volt system • For 400 VDC applications e.g. data center • Especially designed forapplications with symmetrical noise caused by switching semiconductors • Suitable for use in equipment according to IEC/UL 62368-1 • Suitable for use in medical equipment according to IEC/UL 60601-1 (1 MOOP, 1 MOPP) • Other versions on request • Version with varistor for overvoltage protection

Catalogs

FMAB HV
FMAB HV
6 Pages
