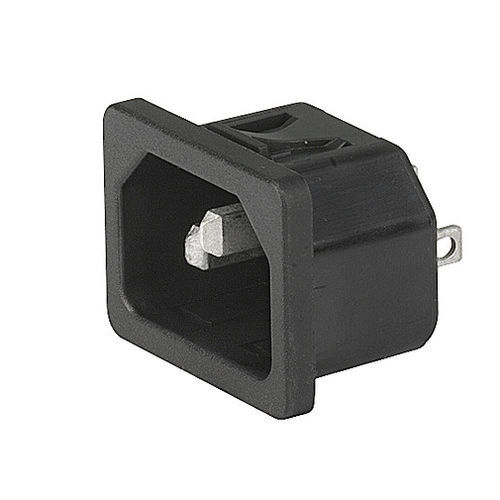

Panel-mounted electrical socket 6100-4IP30IP543-pole
Add to favorites
Compare this product
Characteristics
- Mounting
- panel-mounted
- Protection level
- IP54, IP30
- Number of poles
- 3-pole
- Features
- C14
- Other characteristics
- IEC, RoHS, eco-friendly, sustainable
- Current
10 A, 15 A
- VAC
250 V
Description
IEC Appliance Inlet C14, Snap-in Mounting, Front Side, Solder or Quick-connect Terminal
• Panel mount: Snap-in version front side
• 1 Function:
• Variants with factory mounted inlet gasket and sealing kit for IP54 into the equipement and the pluggable power supply
• Solder / Quick Connect
Unique Selling Proposition
• Variants made from plant-based plastics with 2.4 kg CO2 reduction per packaging unit
• The plant-based plastics meet the increased glow wire test requirements according to IEC 60695-2-12 and -13
• For use in unattended household appliances according to IEC 60335-1
