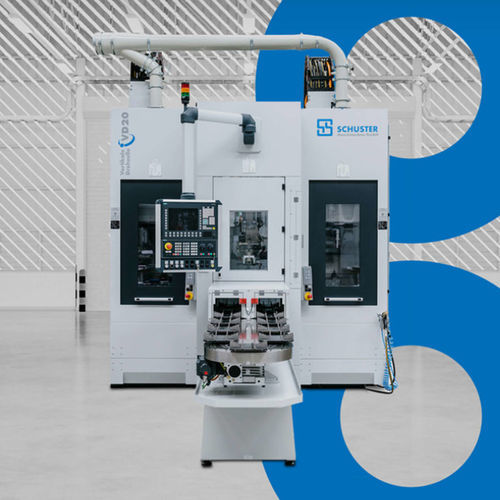

3-axis CNC machining center V

vertical2-spindlefor the automobile industry

The vertical structure of the V series makes the best use of your resources in terms of production area. Fast, compact, and productive, the V series, with its vertical double spindle units, is outstanding for operations such as twin processing or double-sided machining, ensuring the best results. The loading and unloading times are lower than those for conventional pick-up solutions due to the standardized handling system between the two work areas. As before, additional operations such as deburring, turning workpieces, measuring, inspecting, cleaning, and marking can be carried out by the handling system during auxiliary process times. THE SMART, PRODUCTIVE SOLUTION FOR TWIN AND DOUBLE-SIDED MACHINING: DOUBLE SPINDLE CONCEPT The double spindle machines have two separate rotation modules, so that two rotationally symmetrical components with diameters of up to 250 mm can be machined simultaneously. The same high efficiency – for both simultaneous and classic double sided processing. The two modules are completely insulated for the greatest precision and stability – making the conduction of vibrations and temperature changes impossible. Moreover, the bases of the machines have high thermal stability because they are made of 100% polymer concrete. As an option, patented spindle clamping technology provides the rigidity required for milling and drilling, which significantly increases the processing quality. HIGH QUALITY PRODUCTION Because the modules are identical in construction, they ensure high workpiece quality and cutting performance during both soft and hard machining.
