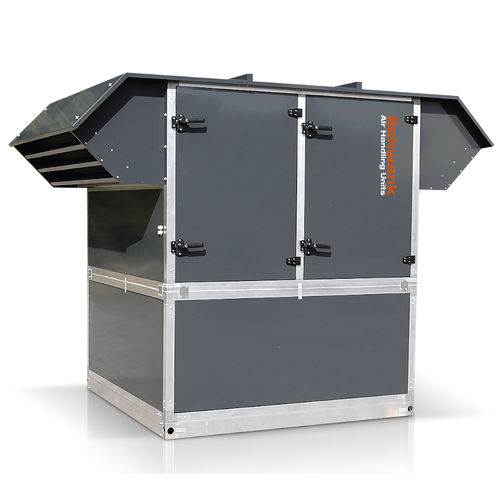

Rooftop air handling unit aeroSchwank H-RI

for residential applicationsoutdoor

aeroSchwank H-RI Air Handling Units, Ventilation Technology Our rooftop solution for decentralised hall ventilation: In a weatherproof version and in the building, ventilation ducts can often be dispensed with entirely. These high-tech air handling systems have been designed to be as efficient as possible, as seen with the inclusion of energy-saving EC fans and a counterflow heat exchanger. In addition to supply and exhaust air, the integrated roof base also accommodates all other media. It can be assembled in advance and integrated into the roof structure. This saves coordination effort and time. The clearly defined interface ensures permanent tightness. The supply air in the aeroSchwank H-RI can be easily distributed for industrial ventilation using one or more blow-out heads. Layer ventilation can also be implemented with little effort. Highlights The air handling unit as a decentralised industrial ventilation system The main benefits of the aeroSchwank H-RI: designed for decentralised building ventilation highly efficient counterflow heat exchanger 4 sizes from 500 – 15,000 m³ / h sealing the device roof with hat profiles without silicone integrated roof base – a single implementation for all media blow-out technology can be integrated The aeroSchwank H-RI is characterised by … a large volume flow range from 500 to 15,000 m³ / h the heat recovery system with counterflow plate heat exchanger with heat recovery up to 90% energy-saving EC fans 100% summer bypass
