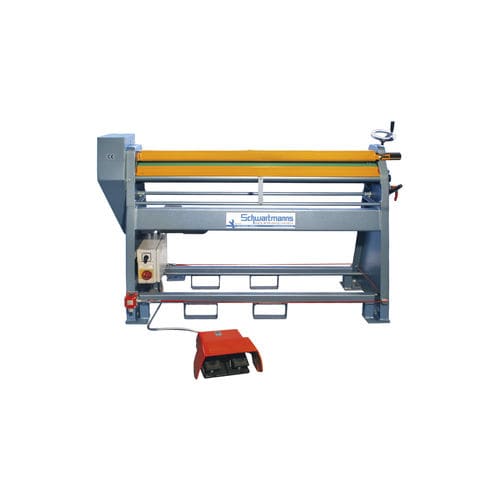

2-roller plate bending machine WSRM 03 / WSRM 04 series

electric

These roll bending machines are standardly equipped with a Driving power for 2 working speeds and with a 3-shaft Driving power.The machine is driven by a pole-changing transmission brake motor over chain transmission to the back gears. The Driving power motor is thermally protected at both speeds. The electric safety control is equipped with: Foot switch with integrated EMERGENCY STOP function for forward and reverse EMERGENCY STOP rip cords on the front and back sides of the machine. The main switch, the manual switch for the speed preselection as well as the CEE plug connection with phase reverser are in the control cabinet. The working shafts are arranged asymmetrically, spherically turned, and are held in place by maintenance-free dry plain bearings. The top shaft can be swung out toward the front and is locked by a closed blocking bearing. The back gear and the clutch gears are to the left, so that even narrow pipes can be easily pulled off.
