Diaphragm pump EC Serie 700airfor gaselectric
Add to favorites
Compare this product
Characteristics
- Technology
- diaphragm
- Fluid
- air, for gas
- Operation
- electric
- Domain
- industrial
- Other characteristics
- OEM
- Flow
Min.: 5.6 l/min
(1.47936 us gal/min)5.2 l/min, 8 l/min
(1.37369 us gal/min, 2.11338 us gal/min)Max.: 18 l/min
(4.7551 us gal/min)- Pressure
1,200 mbar, 1,500 mbar, 1,900 mbar, 2,700 mbar, 2,800 mbar
(17.405 psi, 21.756 psi, 27.557 psi, 39.16 psi, 40.611 psi)
Description

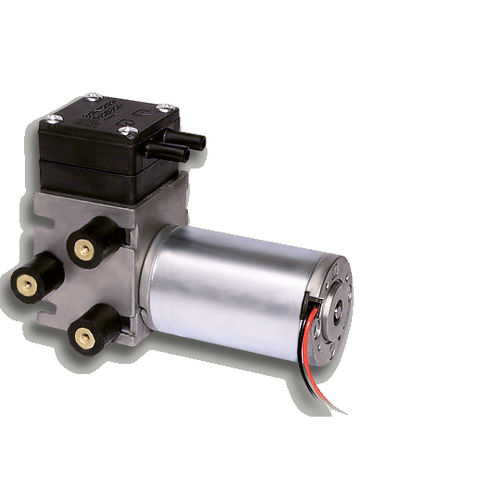

Eccentric Diaphragm Pumps EC Serie 700
The OEM pumps of the EC series 700 deliver volumes up to 18 l/min. They reach up to 3.1 bar pressure and -970 mbar vacuum. The highly resistant diaphragms are well suited for applications involving hot and aggressive gases (e.g. in autoclaves).

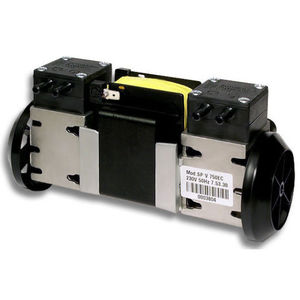

The two head types (-TH) can run serially to improve the vacuum and pressure performance. In parallel operation they allow to run two different medias.
The specially high quality motors obtain the longest service life. For different applications, alternating current (AC) and direct current (DC) versions are available.
The DV types are optimised for maximum pressure performance, the VD types deliver maximum vacuum performance.
Catalogs
Accessories
3 Pages
Other Schwarzer Precision products
Eccentric Diaphragm Pumps EC Serie 700
