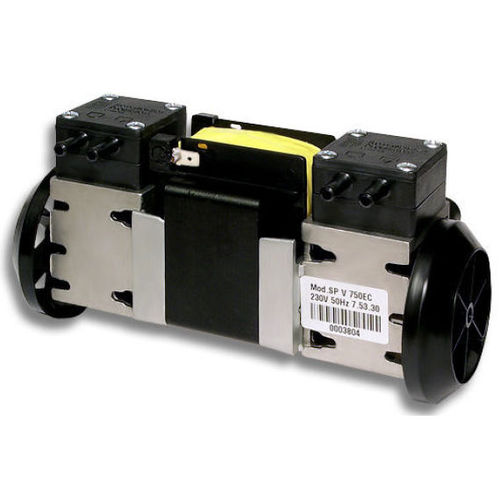

Air pump EC-TH serie 700for gaswith brushless DC motordiaphragm
Add to favorites
Compare this product
Characteristics
- Fluid
- air, for gas
- Operation
- with brushless DC motor
- Technology
- diaphragm
- Domain
- industrial
- Other characteristics
- OEM
- Flow
Max.: 15.5 l/min
(4.09467 us gal/min)5.5 l/min
(1.45295 us gal/min)Min.: 6 l/min
(1.58503 us gal/min)- Pressure
Max.: 3,100 mbar
(44.962 psi)Min.: 0 mbar
(0 psi)
Description
Eccentric Diaphragm Pumps EC Serie 700
The OEM pumps of the EC series 700 deliver volumes up to 18 l/min. They reach up to 3.1 bar pressure and -970 mbar vacuum. The highly resistant diaphragms are well suited for applications involving hot and aggressive gases (e.g. in autoclaves).
The two head types (-TH) can run serially to improve the vacuum and pressure performance. In parallel operation they allow to run two different medias.
The specially high quality motors obtain the longest service life. For different applications, alternating current (AC) and direct current (DC) versions are available.
The DV types are optimised for maximum pressure performance, the VD types deliver maximum vacuum performance.
Catalogs
No catalogs are available for this product.
See all of Schwarzer Precision‘s catalogsOther Schwarzer Precision products
Eccentric Diaphragm Pumps EC Serie 700
