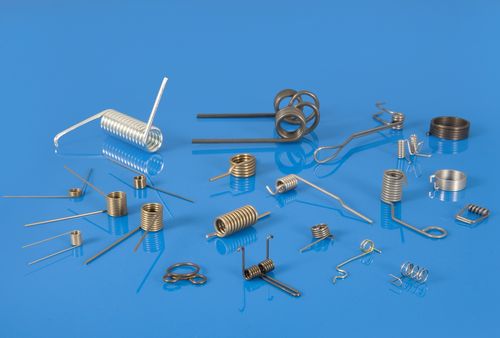

Torsion spring wiresteel
Add to favorites
Compare this product
Characteristics
- Function
- torsion
- Type
- wire
- Material
- steel
- Outer diameter
Max.: 6 mm
(0.2 in)Min.: 0 mm
(0 in)
Description
Dimensional Range
Wire diameter: 0.03 – 6.00 mm
Wire cross section: round, square, rectangular
Common Torsion springs Materials
EN 10270-1 patented drawn spring steel wire
EN 10270-2 oil hardened and tempered spring steel wire
EN 10270-3 stainless spring steel wire
Detailed information on our materials can be found in our detailed table of materials.
Designs
Torsion Spring Shapes
Single torsion spring, double torsion spring, individual torsion spring shapes
Surface Finishing
Gold-plating, silver-plating, nickel-plating, tin-plating, zinc-plating, chrome-plating, Delta Tone, Delta Seal, zinc-flake-coating, phosphatisation, molykoting, gliss coating, colouration, varnishing, powder coating, shot-blasting, glass bead blasting
