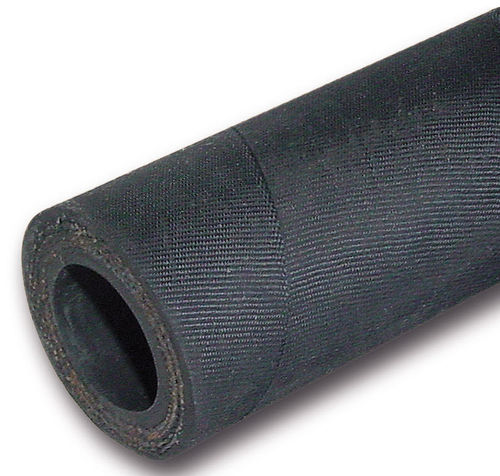

Crude oil hose HOS-4 SHhydraulicsynthetic rubbertransport
Add to favorites
Compare this product
Characteristics
- Use
- for crude oil, hydraulic
- Material
- synthetic rubber
- Applications
- transport, high-pressure
- Other characteristics
- weather-resistant, oil-resistant, abrasion-resistant, wire-braided
- Inner diameter
Max.: 50.8 mm
(2 in)Min.: 19 mm
(0.748 in)- Outer diameter
Max.: 681 mm
(26.811 in)Min.: 32.2 mm
(1.268 in)- Pressure
Max.: 430 bar
(6,236.623 psi)Min.: 250 bar
(3,625.943 psi)- Temperature
Max.: 100 °C
(212 °F)Min.: -40 °C
(-40 °F)
Description
High Pressure use for petroleum based hydraulic fluids, especially suitable for a long cycle-lifetime, very good flexibilty. Temperature: -40 ° C to +100 ° C; Outer cover: made of synthetic rubber, highly resistant to abrasion, oil, ozone, weather resistant; Inner core: made of synthetic, oil resistant rubber.
