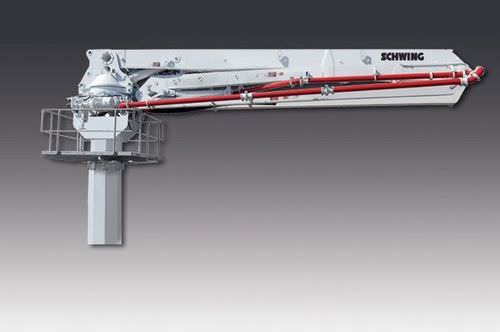

Concrete placing boom SPB 35

Wherever concrete is needed, in whatever quantities, Schwing has the best system to deliver. Our separate placing booms offer extraordinary versatility producing high delivery rates over large areas and all in a variety of mounting options: free standing, slab supported, self-climbing form systems, on barges, walls or most any structure. Because of our vast experience designing placing booms for the construction of high-rise buildings, dams, bridges, oil drilling platforms, LNG tanks and many other structures, we have a proven method to speed your project to completion. When the project is the most challenging, that’s when Schwing’s versatile equipment combines with the knowledge and experience of our application engineers to design a delivery system to meet your concrete placement goals. Schwing brings innovation to the placement of concrete with octagonal mast sections that not only optimize strength and durability through their shape, but are easy to transport and provide a modular approach for ultimate flexibility. Schwing placing booms easily transition from free-standing to slab supported configurations with a range of bolt-on accessories that can be easily added. Schwing SPB 35 concrete placing boom has a vertical reach of 114 ft or 34.7 m and a horizontal reach of 114 ft or 34.7 m. With tip hose, it provides a below-grade reach of 95′ 1″ or 29 m. The pipeline diameter is 5 in or 125 mm. The boom is fully-articulating 4-section roll-and-fold type, and provides rotation of 550 degrees. SPB 35 has a total picking weight of 12,890 lbs or 5,846 kg. It offers a maximum free standing height on octagonal mast of 51 ft or 15.5 m.
