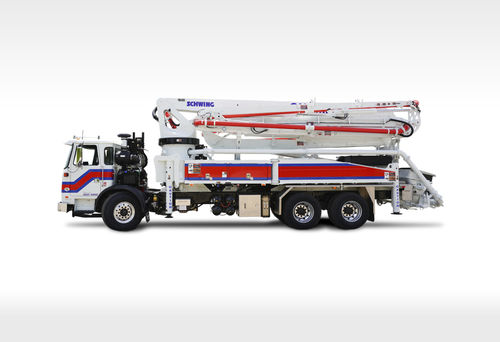

Mobile truck-mounted concrete pump S 38 SXGfor constructiondiesel
Add to favorites
Compare this product
Characteristics
- Configuration
- mobile
- Applications
- for construction
- Type of fuel
- diesel
- Output
137 m³/h
(4,838.1 ft³/h)- Pumping pressure
75 bar
(1,087.8 psi)- Width
6,900 mm, 7,300 mm
(272 in, 287 in)- Length
7,600 mm
(299 in)- Height
7,400 mm
(291 in)
Description
Vertical Reach - 122′ 5″ - 37.3 m
Horizontal Reach - 107 ft - 32.6 m
Below Grade Reach w/ Tip Hose - 85 ft - 25.9 m
Pipeline Diameter - 5 in - 125 mm
Boom Type / Sections - Hyper Extension/ 5
Boom Rotation - 730 degrees
Outrigger Type – Front - Super X Outriggers, Fully Hydraulic,
Extension & Jacking
Outrigger Type – Rear - Hydraulic Extension & Jacking
Outrigger Soil Pressure w/o Dunnage (front/rear) - 626/359 psi - 43.2/24.8 bar
Outrigger Soil Pressure w/ Dunnage (front/rear) - 78/82 psi - 5.4/5.7 bar
PUMP SPECIFICATIONS- 2023-5 110/75 MPS with M Rock
U.S. - Metric
Max. Strokes Per Minute - 27
Max. Aggregate size - 2.5 in - 63.5 mm
Material Cylinder Diameter - 9 in - 230 mm
Material Cylinder Stroke - 79 in - 2000 mm
Differential Cylinder Diameter - 4.3 in - 110 mm
Maximum Oil Flow - 141.1 gal/min - 535 l/min
Hydraulic Circuitry Type - MPS
Valve Type - M Rock
