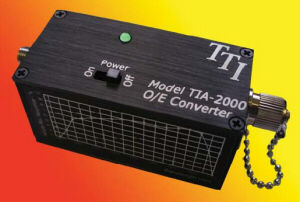

Optical-electrical converter TIA-2000

analogdigitalfiber optics

Features - • DC to 20 GHz Bandwidth typical, 18 GHz min • Spectral Response 1260 - 1620 nm - • Universal Power Supply - • Two Year Warranty Applications - • RF over fiber links - • System Characterisation - • 20 GHz digital and analog links - • High speed test and measurent • The TIA-2000 Optical to Electrical Converter is a high speed photodetector moddule designed for direct optical-to-electrical conversion of RF-modulated optical signals and provides a typical bandwidth of DC-20 GHz. • The optical input is supplied through a singlemode 9/125 fiber connector equipped with an ultra-polish FC-PC connector or optionally an angle polished, low reflection FC/APC connector. The RF output of the device is provided through a high performance SMA connector. The typical optical responsivity is 22 V/W at 1550 nm when the unit is terminated with a 50 ohm load. Specifications - • Detector type: InGaAs/InP (1260-1620nm) - • Current responsivity: 0.8 A/W @ 1550nm typical - • Maximum Linear Input Power: 3mw - • Maximum Input Power without Damage: 10mw - • Bandwith -(3dB): DC to 20 GHz Typ, 18 GHz min - • Output Impedance: 50 Ohms - • Output Connector: Type K SMA Female - • Fiber Optic Input Connector: FC/UPC or FC/APC - • Input Numerical Aperture: 0.11 - • Optical Return Loss: >35dB, >52dB with APC Connection - • Electrical Return Loss: 10 dB - • Power: Universal Power Supply - • Dimensions: 30.5mm x 63mm x 38mm - • Weight: 0.16 kg - • LED Annunciators Provided: Power On - • Operating Temperature Range: 0 - 40 ºC - • Standard Warranty: Two Years, Component and Workmanship, 30 Day Satisfaction Guarantee - • Accessories Supplied: Transit/Storage Case, Operating Manual, Universal Power Supply
