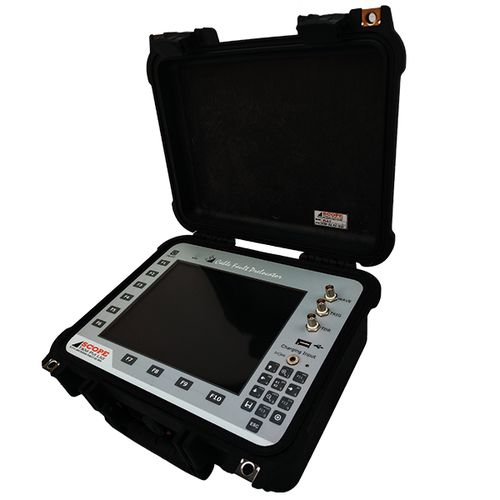

Cable fault locator CFL PL4+

The new generation CFL PL4+ Cable Fault Pre-locator from SCOPE is the ultimate solution for locating underground cable faults in minimum time. It uses advanced technology for fault distance measurement which helps even an unskilled operator to locate the fault accurately up to 256 km. CFL PL4+ portable Prelocator is used for identification of fault types in underground cables and the distance of fault. These products are designed to find out various types of faults in the cable such as Open Circuit, Short Circuit, Splice in Cable, High Resistance, Moisture Ingress, etc. Various modes of operation combined with advanced features offer the user the most effective solution for the job FEATURES Compact, Lightweight and Rugged User-friendly operation Wide measurement range up to 256km Highest measurement accuracy up to 0.025% A high-speed sampling of 800MHz Multiple waveform comparison with Subtraction mode to show waveform differences Zoom function for detailed analysis of the waveform Asynchronous interference & noise suppression Adjustable Gain and Balance Inbuilt Cable Library for easy setup and testing Inbuilt memory to store 300 waveforms with USB connectivity High resolution 10.4” colour TFT display “Screenshot” function with image saving in JPG Mains, as well as Inbuilt Rechargeable Battery, operated Housed in IP67 class moulded case
