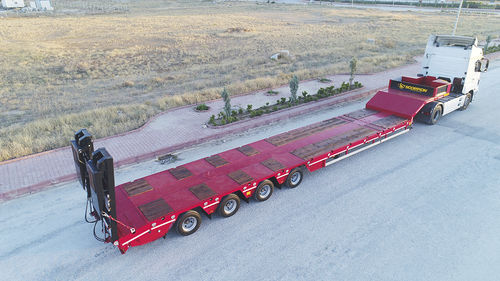

Gooseneck semi-trailer HKM4

air-suspension4-axletowed

CHASSIS: ST52 main frame in accordance with EN 10025-2 2004 Standards. AXLE GROUP: 12 – tonner 4 pcs R:22,5” or 10 – tonner 3 pcs R:17,5” European Brand (SAF HOLLAND) or Turkish Brand. SUSPENSION: Air Suspension. TIRES AND RIMS: Tire options suitable for 17,5” and 22,5” rims. ELECTRICAL SYSTEM: 24 V Electrical system in accordance with European Standards. BRAKE SYSTEM: EBS brake system (4S/2M)(4S/3M) in conformity with 71 /320 / EWG or ECE R 13 Regulations. RAMPS: Hydraulic ramps with appropriate dimensions according to the customers’ preferences. KING-PIN: 2” 42 CRMO4 Steel King-Pin (in accordance with DIN 74080) or 3,5” 42 CRMO4 Steel King-Pin (in accordance with DIN 74083) are used. LANDING GEAR: 24 – tonner 750mm or 850mm mechanical landing legs. REAR STABILIZER BARS GROSS WEIGHT: 62.000 Kgs LADEN MASS WEIGHT: 51.000 Kgs PAINT & GALVANIZATION Main chassis and entire vehicle will be painted in paint oven as Washing + Sandblasting + two-coat epoxy primer + two-coat acrylic paint Color will be specified according to the customers’ requests ACCESSORIES WHEEL CHOCK: Plastic (1 Pc). FENDER: Plastic Fenders. FIRE EXTINGUISHER CABINET: 1 Pc. WATER TANK: 1 Unit. TOOL BOX: Closets available on Gooseneck. REFLECTORS: 42x42mm Reflectors and anti-spray mud laps in accordance with European Standards. OPTIONS RAMPS: Sliding of ramps inside and outside, foldable ramps SELF – STEERING AXLE
