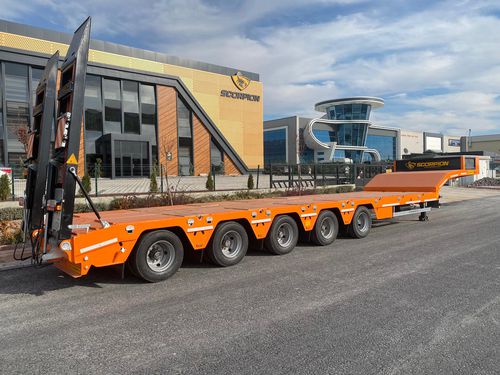

Gooseneck semi-trailer HKM5
air-suspension5-axletowed

gooseneck semi-trailer
gooseneck semi-trailer
gooseneck semi-trailer
gooseneck semi-trailer
gooseneck semi-trailer
gooseneck semi-trailer
gooseneck semi-trailer
Add to favorites
Compare this product


Characteristics

Type
gooseneck, air-suspension
Number of axles
5-axle
Mounting
towed
Empty weight

12,000 kg
(26,455.5 lb)

Description

CHASSIS: ST52 main frame in accordance with EN 10025-2 2004 Standards. AXLE GROUP: 12 – tonner 5 pcs R:22,5” or 10 – tonner 5 pcs R:17,5” European Brand (SAF HOLLAND) or Turkish Brand. SUSPENSION: Air Suspension. TIRES AND RIMS: Tire options suitable for 17,5” and 22,5” rims. ELECTRICAL SYSTEM: 24 V Electrical system in accordance with European Standards. BRAKE SYSTEM: EBS brake system (4S/3M) in conformity with 71 /320 / EWG or ECE R 13 Regulations. RAMPS: Hydraulic ramps with appropriate dimensions according to the customers’ preferences. KING-PIN: 2” 42 CRMO4 Steel King-Pin (in accordance with DIN 74080) or 3,5” 42 CRMO4 Steel King-Pin (in accordance with DIN 74083) are used. LANDING GEAR: 24 – tonner 750mm or 850mm mechanical landing legs. REAR STABILIZER BARS GROSS WEIGHT: 72.000 Kgs LADEN MASS WEIGHT: 60.000 Kgs PAINT & GALVANIZATION Main chassis and entire vehicle will be painted in paint oven as Washing + Sandblasting + two coat epoxy primer + two coat acrylic paint Color will be decided according to the customers’ requests ACCESSORIES WHEEL CHOCK: Plastic (1 Pc). FENDER: Plastic Fenders. FIRE EXTINGUISHER CABINET: 1 Pc. WATER TANK: 1 Unit. TOOL BOX: Closets available on Gooseneck.  REFLECTORS: 42x42mm  Reflectors and anti-spray mud laps in accordance with European Standards. OPTIONS RAMPS: Sliding of ramps inside and outside, foldable ramps SELF – STEERING AXLE
