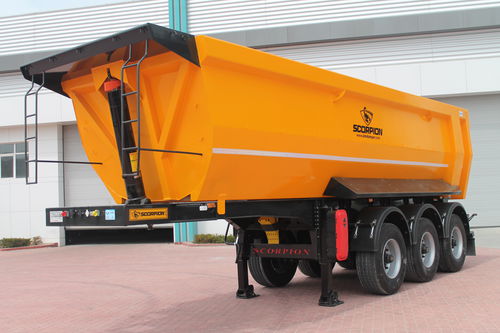

Dump semi-trailer

air-suspension3-axletowed

CHASSIS: Structure steels in accordance with TS EN 10025- 2 2004 TIPPER BODY: 4/5 or 6mm HARDOX 450, DOMEX S700, ST52 (S355 JR) AXLE GROUP: 3pcs 12-tonner R:22.5” Turkish brand drum or disc brake axles / European Brand axles (SAF Holland) SUSPENSION: Air Suspension TIRES AND RIMS: 385/65 R 22.5” - 385/55 R 22.5” tires ELECTRICAL SYSTEM: 24 V electrical system (in accordance with European Standards) BRAKE SYSTEM: EBS brake system (2S / 2M) in conformity with 71 /320/EWG and ECR 13 Regulations KING-PIN: 2 “ Steel King-Pin in accordance with DIN 74080 is used. LANDING GEAR: 24 – tonner 850mm mechanical landing legs GROSS WEIGHT: 39.000 kgs LADEN MASS WEIGHT: 31.700 kgs PAINT & GALVANIZATION Main chassis and entire vehicle will be painted in paint oven as Washing + Sandblasting + two-coat epoxy primer + two-coat acrylic paint. Color will be specified according to the customers’ requests. ACCESSORIES Wheel Chock: Plastic (1 Pc) Fire Extinguisher Box: 1 Pc. Water Tank: 1 Unit Tool Box: 1 Pc (50cm) Reflectors and Anti-spray mud laps in accordance with European Standards OPTIONS Tarpaulin system, according to the customers’ requests Balcony Hydraulically operated rear cover Isolation system for hot materials carriage
