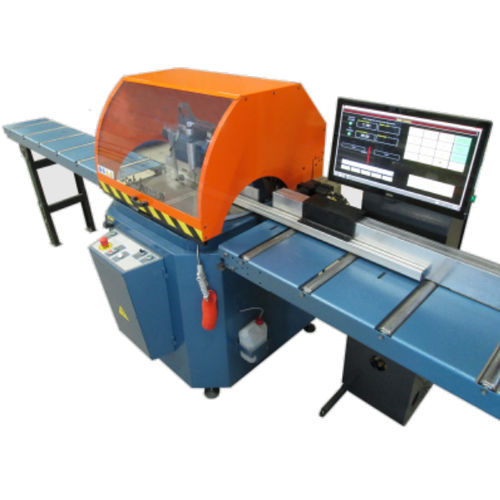

Circular saw SUP-600

horizontalverticalfor aluminum

This SUP-600 NF Upcut cold saw has been coupled with AngleMaster technology and is now a true production saw. It is programmable and will feed material, cut multiple angles at different part lengths and more with a push of a button. This Upcut Circular Cold Saw is disigned specifically for cutting non-ferrous material and features a 24" (600mm), 132 tooth carbide blade which is capable of producing round cuts up to 9" in diameter and rectangular cuts up to 15" x 6", the SUP-600 NF offers an increased cutting capacity not found in traditional pivot down saws. Coupling this saw with our new AngleMaster measuring system, creates a semi-automatic programmable saw system that automatically rotates to any cut angle, pushes the material into the saw and automatically rotates to the next desired angle. (It gives you a completely finished part.) Plus, you can store cut lists in its 21" touch screen control. A MUST SEE for the aluminum extusion market. Standard features include an adjustable feed rate, mitering capability with fixed stops at 22.5 degrees, 45 degrees, 90 degrees, -45 degrees and -22.5 degrees, two horizontal and two vertical pneaumatic clamps to secure material being cut and a 4-1/2" port for chip collection plus a drawer under the bottom of the saw. The SUP-600 NF is available in 230 volt and 460 volt configurations and is backed by Scotchman's superior warranty.
