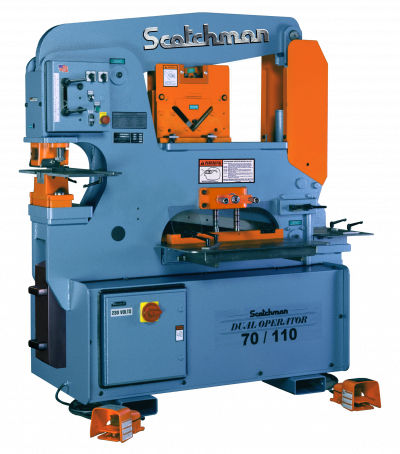

Semi-automatic punching press DO 70/110-24M
hydraulicfor metal sheetscutting

semi-automatic punching press
semi-automatic punching press
semi-automatic punching press
semi-automatic punching press
semi-automatic punching press
semi-automatic punching press
semi-automatic punching press
Add to favorites
Compare this product


Characteristics

Control
semi-automatic
Drive type
hydraulic
Product handled
for metal sheets
Associated function
cutting
Pressing force

700 kN

Description

Dual Operator allows for Two Operators to Work at the Same Time at Full Capacity 70-Ton Punch Station (1-1/8" in 3/4") Keyed Punch Ram for Safety 9" Throat Depth Punch Gauging Table with Fence and Scale Die Holder Complete with 2" Die Insert Punch Nut with Wrench Adjustable Swing-Away Stripper One Round Punch & Die: Max. Dia. 1-1/4" Punch Jog Control Two Adjustable Electric Stroke Controls with Scale Two Electric Remote Foot Pedals Two 2-Stage Hydraulic Pumps Two Valves Angle Shear Capacity 6" x 6" x 1/2" at 90° Rectangle Notcher 3" x 5" x 3/8" 3" x 4" x 1/2" Notcher Table with Guides 110 Ton, 24" Bar Shear with Sabre Blade (1" x 6", 3/8" x 24")
