Metal intermodal container SB4744

transportflat rack

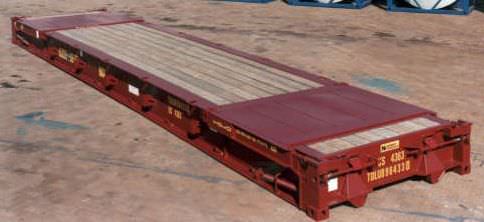

This is a heavy duty flatrack where the end walls fold flush with the floor. Four units fold into 8' 6". The 40ft Type (4) has a flat paneled end wall which folds directly on top of the base. When folded it can be used as a 40' platform flat. The base includes four full width cross floor lashing recesses which will support chocking blocks, lashing chains, straps etc. Recesses are open to the ground for self cleaning. The end wall can be removable for vehicle loading. The floor surface is virtually continuous through recess zones. STANDARD FEATURES • End wall folding flush with the floor • 50 ton gross or more • Lashing beams set into the floor • Removable end walls for vehicle loading • Spare parts available worldwide • Commonly and readily available for leasing • Four units fold into 8’ 6” • 7 high stacking at 30,480 Kgs • External Folded Dimensions: 2’ 1 1/2”/648 • Internal Dimensions: Wall Panel to Panel: 39’ 11 1/2”/12,180, Mid-Post to Post: 38’ 2 47/64”/11,652, Platform Width: 7’ 3 41/64”/2,226, Height at Post: 6’ 5”/1,955 • TYPICAL LASHINGS AND INTERFACING • Stanchions: 6 sockets per side size 85mm • Lashing bars: 12 x 5000kg per side, 2 per end • Cross floor lashing: 4 x 2m per floor each with: 6 x 5000kg lashing bars, 8 x 2m chocking slots • Floor: 45mm softwood planks 6mm gaps • Gooseneck tunnel: both ends • Fork pockets: 115 x 360mm • Twistlocks: 1 piece forged lift element, 30 degree stainless steel detent • Header locks: 2 per end semi-automatic • Corner locking: hammer locked conical pin • Counterbalancing: leaf spring or coil • Removable ends: optional use as ramps
